Black box testing in software engineering

Understanding black box testing in software engineering

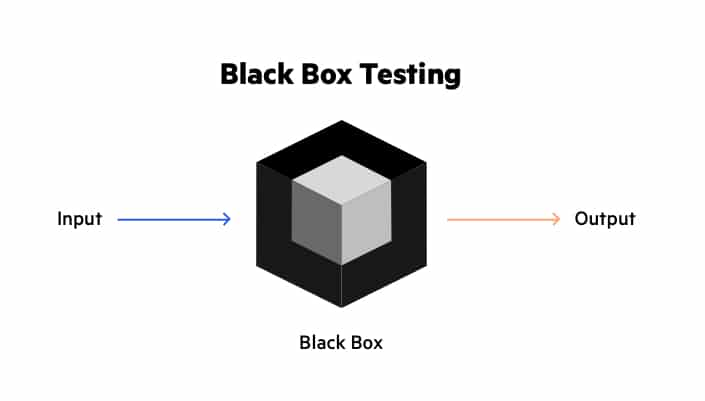

Black box testing, also known as functional testing, is a method of software testing that focuses on the external behavior of a system without delving into its internal structure or code. It’s like testing a black box, where you only have access to the inputs and outputs, not the inner workings. Let’s learn about black box testing in software engineering.

Black box testing in software engineering

Key Characteristics of black box testing in software engineering

  • External Focus: Concentrates on the system’s functionality from a user’s perspective.
  • Input-Output Analysis: Verifies that the system produces the correct outputs for given inputs.
  • Non-Code-Based: Does not require knowledge of the underlying code.
  • Scenario-Based: Tests based on predefined scenarios and use cases.

Types of black box testing

  1. Equivalence Partitioning: Divides input data into equivalent classes and tests one representative from each class.
  2. Boundary Value Analysis: Tests data at the boundaries of input ranges to identify potential errors.
  3. Decision Table Testing: Creates decision tables to represent different combinations of conditions and their corresponding actions.
  4. State Transition Testing: Tests the system’s behavior in different states and transitions between them.
  5. Use Case Testing: Tests the system’s functionality based on user interactions and scenarios.
  6. Smoke Testing: A quick and superficial test to verify if the system is stable enough for further testing.
  7. Sanity Testing: A subset of smoke testing that focuses on critical functionalities.

Advantages of Black Box Testing

  • Independent of Implementation: Tests the system’s behavior without relying on internal knowledge.
  • Efficient for Large Systems: Can be applied effectively to complex systems with many components.
  • Can be Performed by Non-Technical Personnel: Does not require in-depth programming knowledge.
  • Focused on User Perspective: Ensures the system meets user requirements and expectations.

Limitations of Black Box Testing

  • May Not Detect All Defects: Can miss internal logic errors or boundary condition issues.
  • Requires Thorough Test Cases: Effective testing depends on well-designed test cases.
  • Can be Time-Consuming: Creating and executing test cases can be resource-intensive.

Best Practices

  • Clear Requirements: Ensure that requirements are well-defined and unambiguous.
  • Effective Test Cases: Develop comprehensive test cases that cover all possible scenarios.
  • Prioritization: Focus on high-risk areas and critical functionalities.
  • Test Automation: Automate repetitive test cases to improve efficiency.
  • Continuous Testing: Incorporate black box testing into the development lifecycle for early defect detection.

Conclusion

Black box testing is a vital component of software quality assurance. By systematically testing the system’s external behavior, you can ensure that it meets user expectations and is free from critical defects. By following the best practices outlined in this guide, you can effectively apply black box testing techniques to your software development projects.
